Manufacturer Part Number: 1602

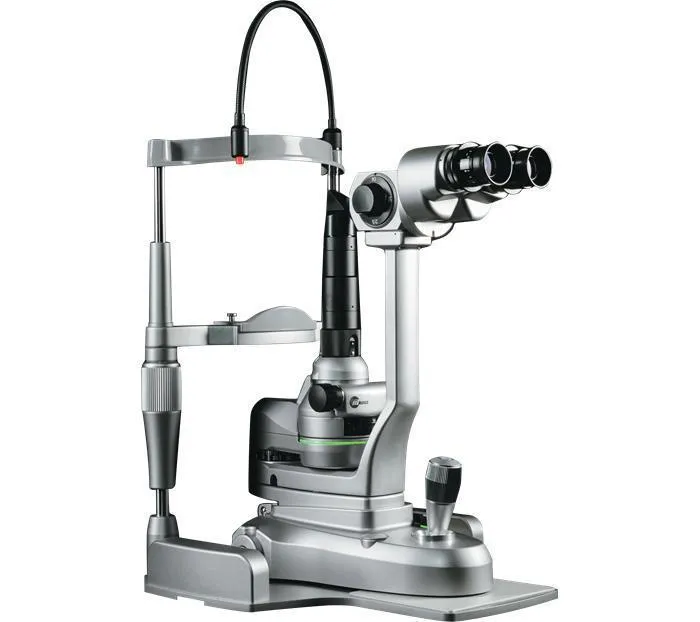

20 Years ago, Marco changed the boundaries of conventional slit lamp design and performance with the original Ultra Series. Today, the Ultra M Series introduces a new era of diagnostic empowerment. Marco has again established the latest standard in slit lamp examinations.

Single-element, high-luminance LED illumination
3-power Parallel / Galilean optics
0-14mm continuously adjustable aperture
Completely integrated (cable free), low voltage electronic system
Cobalt Blue, Red-free, Blue LED correction filters
Self-contained headrest & baseplate assembly

Specifications:

Type Binocular Stereomicroscope: Parallel (Galilean)
Light Source: LED
Light Source Configuration: Compact/Horizontal
Background Illumination: Not standard (option only)
Light Filters: Blue, Red-free, Blue LED Correction
Slit Width: 0-14mm continuous variable
Aperture Diaphragm Diameter: (Ø) 14, 8, 5, 3, 0.3mm
Total # Power Magnifications: 3 (10x, 16x, 25x)
Magnification Change: 3 Position Rotating Drum
Eye Pieces: 16x wide-field, high-eyepoint
Real Field of View: (Ø) 23.3mm, 14mm, 8.8mm
Interpupillary Adjustment: 52-82mm
Diopter Adjustment Range: ( /-) 7 diopters
Horizontal Coarse Movement: 105mm
Horizontal Fine Movement: 15mm
Vertical Movement: 30mm
Fixation Light Source: Red LED on Flexible Arm
Large Patient Chin Rest: Not standard (option only)
Chinrest Elevation: 85mm
Power Supply: AC100V-240V ( /-10%)
Power Consumption: DC5V 2A
Weight: 11Kg
